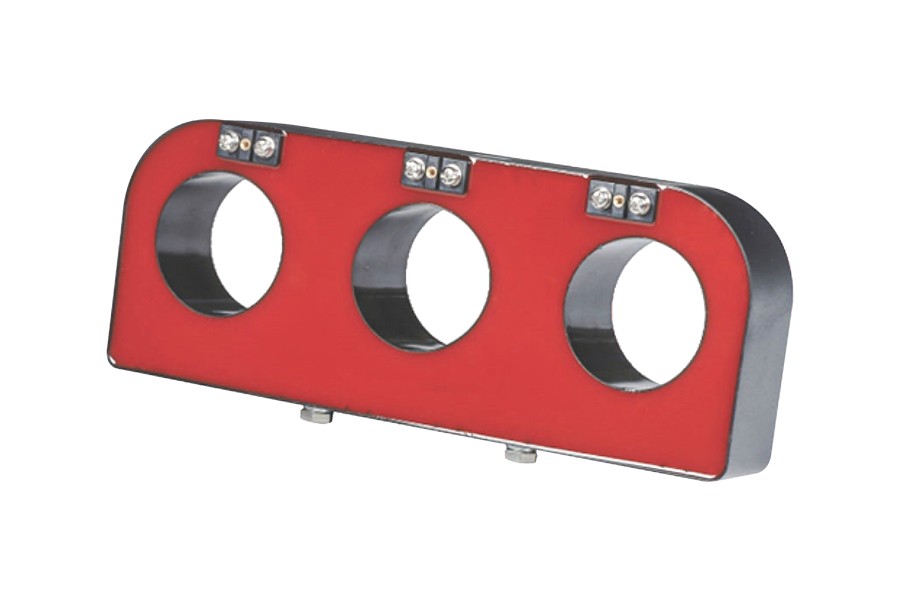

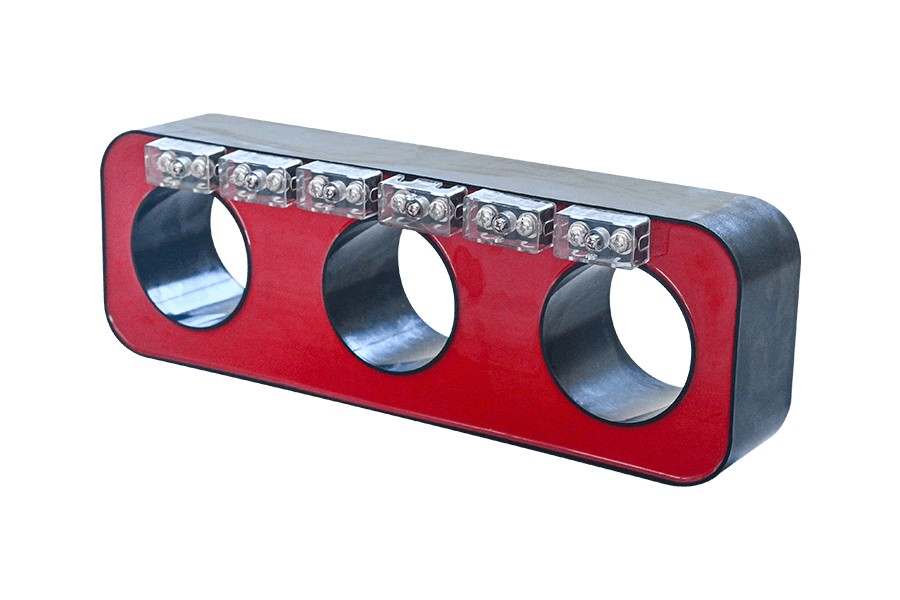

Transformer Arus Kabinet Inflatable LSY sing dikembangake dening Comewill dirancang khusus kanggo switchgear terisolasi gas (GIS) voltase medium lan sistem kabinet kembung. Penting kanggo njaga stabilitas sistem, nyegah kakehan peralatan, lan njamin koordinasi perlindungan sing dipercaya.
1. Akurat Tiga-Fase Ngawasi Saiki
Trafo ngirim pangukuran saiki kanthi tliti dhuwur, mbisakake ngawasi magnitudo saiki lan fluktuasi ing sistem telung fase. Iki ngidini operator ndeteksi kelainan kayata kakehan, ora seimbang, utawa kahanan fault ing awal lan njupuk tindakan koreksi sadurunge karusakan.
2. Desain Kompak lan Ngirit Spasi
Struktur kompak lan desain entheng saka LSY Inflatable Cabinet Current Transformers ngidini instalasi fleksibel tanpa mengaruhi komponen liyane ing switchgear.
3. Struktur Insulasi sing disegel
Struktur iki kanthi efektif ngisolasi sistem penggulungan internal saka kelembapan, bledug, lan gangguan eksternal, njamin stabilitas jangka panjang lan keandalan operasional.
4. Multiple Akurasi Pilihan
LSY Inflatable Cabinet Current Transformer ndhukung ukuran, proteksi, lan konfigurasi puteran kaping pindho, ngidini para insinyur nggabungake fungsi pangukuran lan relay ing sistem sing padha.
5. Konstruksi Industri Awet
Diprodhuksi nggunakake bahan magnetik berkualitas tinggi lan teknologi penggulungan presisi, trafo njaga kinerja sing stabil sanajan ing kahanan beban sing terus-terusan.
| LSY-10/107 | Rated arus primer (A) | Kelas akurasi (measuring) | Kelas akurasi (proteksi) | Kelas Akurasi (gulungan ganda) | |||||||
| 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | 10P20 | 0.2S | 0.5 | 10P10 | 10P15 | ||
| 75 | 2 | 2 | 1 | 2.5 | -- | -- | -- | 1 | 1 | -- | |
| 100 | 2.5 | 2.5 | 2.5 | 5 | -- | -- | -- | 1 | 1 | -- | |
| 150 | 2.5 | 2.5 | 2.5 | 5 | -- | -- | -- | 1.5 | 1.5 | -- | |
| 200 | 5 | 5 | 2.5 | 7.5 | -- | -- | -- | 2.5 | 2.5 | -- | |
| 300 | 5 | 5 | 5 | 7.5 | -- | -- | -- | 2.5 | 2.5 | -- | |
| 400 | 10 | 10 | 5 | 15 | -- | -- | -- | 5 | 5 | -- | |
| 500 | 10 | 10 | 10 | 15 | -- | -- | -- | 5 | 5 | -- | |
| 600 | 10 | 15 | 10 | 15 | -- | -- | -- | 5 | 7.5 | -- | |
| 800 | 10 | 15 | 10 | 20 | -- | -- | -- | 5 | 7.5 | -- | |
| LSY-10/110 | 75 | - | - | 1 | - | - | - | - | 1 | - | - |
| 100 | - | - | 2.5 | - | - | - | - | 1 | - | - | |
| 150 | - | - | 2.5 | 2.5 | - | - | - | 1.5 | - | - | |
| 200 | - | 2.5 | 2.5 | 5 | - | - | - | 2.5 | 5 | - | |
| 300 | 2.5 | 2.5 | 5 | 5 | - | - | - | 2.5 | 5 | - | |
| 400 | 5 | 5 | 5 | 7.5 | - | - | - | 5 | 7.5 | - | |
| 500 | 5 | 5 | 10 | 10 | - | - | - | 5 | 10 | - | |
| 600 | 5 | 10 | 10 | 10 | - | - | - | 5 | 10 | - | |
| 800 | 10 | 10 | 10 | 10 | - | - | - | 5 | 10 | - | |
| LSY-10/120 | 75 | 75 | - | - | 1 | - | - | - | - | 1 | - |
| 100 | 100 | - | - | 2.5 | - | - | - | - | 1 | - | |
| 150 | 150 | - | - | 2.5 | 2.5 | - | - | - | 1.5 | - | |
| 200 | 200 | - | 2.5 | 2.5 | 2.5 | 5 | - | - | 2.5 | 5 | |
| 300 | 300 | 2.5 | 2.5 | 5 | 5 | 5 | - | - | 2.5 | 5 | |
| 400 | 400 | 5 | 5 | 5 | 5 | 7.5 | - | - | 5 | 7.5 | |
| 500 | 500 | 5 | 5 | 5 | 10 | 10 | - | - | 5 | 10 | |
| 600 | 600 | 5 | 5 | 10 | 10 | 10 | - | - | 5 | 10 | |
| 800 | 800 | 10 | 10 | 10 | 10 | 10 | - | - | 5 | 10 | |
| LSY-10/127 | 75 | - | - | 1 | - | - | - | - | 1 | - | - |
| 100 | - | - | 2.5 | - | - | - | - | 1 | - | - | |
| 150 | - | - | 2.5 | 2.5 | - | - | - | 1.5 | - | - | |
| 200 | - | 2.5 | 2.5 | 5 | - | - | - | 2.5 | 5 | - | |
| 300 | 2.5 | 2.5 | 5 | 5 | - | - | - | 2.5 | 5 | - | |
| 400 | 5 | 5 | 5 | 7.5 | - | - | - | 5 | 7.5 | - | |
| 500 | 5 | 5 | 10 | 10 | - | - | - | 5 | 10 | - | |
| 600 | 5 | 10 | 10 | 10 | - | - | - | 5 | 10 | - | |
| 800 | 10 | 10 | 10 | 10 | - | - | - | 5 | 10 | - | |
| LSY-10/130 | 75 | - | - | 1 | - | - | - | - | 1 | - | - |
| 100 | - | - | 2.5 | - | - | - | - | 1 | - | - | |
| 150 | - | - | 2.5 | 2.5 | - | - | - | 1.5 | - | - | |
| 200 | - | 2.5 | 2.5 | 5 | - | - | - | 2.5 | 5 | - | |
| 300 | 2.5 | 2.5 | 5 | 5 | - | - | - | 2.5 | 5 | - | |
| 400 | 5 | 5 | 5 | 7.5 | - | - | - | 5 | 7.5 | - | |
| 500 | 5 | 5 | 10 | 10 | - | - | - | 5 | 10 | - | |
| 600 | 5 | 10 | 10 | 10 | - | - | - | 5 | 10 | - | |
| 800 | 10 | 10 | 10 | 10 | - | - | - | 5 | 10 | - | |
| LSY-10/150 | 75 | - | - | 1 | - | - | - | - | 1 | - | - |
| 100 | - | - | 2.5 | - | - | - | - | 1 | - | - | |
| 150 | - | - | 2.5 | 2.5 | - | - | - | 1.5 | - | - | |
| 200 | - | 2.5 | 2.5 | 5 | - | - | - | 2.5 | 5 | - | |
| 300 | 2.5 | 2.5 | 5 | 5 | - | - | - | 2.5 | 5 | - | |
| 400 | 5 | 5 | 5 | 7.5 | - | - | - | 5 | 7.5 | - | |
| 500 | 5 | 5 | 10 | 10 | - | - | - | 5 | 10 | - | |
| 600 | 5 | 10 | 10 | 10 | - | - | - | 5 | 10 | - | |
| 800 | 10 | 10 | 10 | 10 | - | - | - | 5 | 10 | - | |
| Gunakake | Pengukuran transformator arus | Transformator saiki proteksi | Transformator arus gulung ganda | |||||||
| Akurasi lan beban dirating (VA) | Akurasi lan beban dirating (VA) | Kelas akurasi lan beban sing dirating | ||||||||
| Stabilake arus primer | 0.2s | 0.2 | 0.5 | 10P20 | 10P15 | 10P10 | 0.2s | 0.5 | 10P15 | 10P10 |
| 75 | - | - | 1 | - | - | - | - | 1 | - | - |
| 100 | - | - | 2.5 | - | - | - | - | 1 | - | - |
| 150 | - | - | 2.5 | - | - | 2.5 | - | 1.5 | - | - |
| 200 | - | 2.5 | 2.5 | - | - | 5 | - | 2.5 | - | 5 |
| 300 | 2.5 | 2.5 | 5 | - | - | 5 | - | 2.5 | - | 5 |
| 400 | 5 | 5 | 5 | - | - | 7.5 | - | 5 | - | 7.5 |
| 500 | 5 | 5 | 10 | - | - | 10 | - | 5 | - | 10 |
| 600 | 5 | 5 | 10 | - | - | 10 | - | 5 | - | 10 |
| 800 | 10 | 10 | 10 | - | - | 10 | - | 5 | - | 10 |
Cathetan: Kertu spring stainless steel disesuaikan miturut syarat pangguna
